Exam Answers v3.x and v4.0
Options with highlight colours are correct answer
1 Which statements are true concerning the shared memory buffering used by an Ethernet switch? (Choose two.)
• Frames are processed through a single queue.
• All frames are placed in a common memory buffer.
• Frames are placed in a queue for the destination port.
• A port with a full memory buffer can cause frames for available ports to be delayed.
• Each switch port is statically assigned a buffer of equal size.
2 What are the functions of routers? (Choose three.)
• improving network performance by increasing latency by twenty to thirty percent
• segmenting broadcast domains
• forwarding packets based on destination network layer addresses
• segmenting collision domains
• forwarding packets as soon as the destination MAC address is read
• developing routing table entries based on source IP addresses
3 What are the functions of a Layer 2 Ethernet switch? (Choose three.)
• preventing broadcasts
• increasing available bandwidth per user
• decreasing the size of collision domains
• isolating traffic among segments
• routing traffic between different networks
• decreasing the number of broadcast domains
4 Why does a switch have higher throughput compared to a bridge?
• Switching occurs in software.
• Switching occurs in hardware.
• Switches create multiple broadcast domains.
• Switches segment LANs.
5 Why would a network administrator segment a network with a Layer 2 switch? (Choose two.)
• to create fewer collision domains
• to enhance user bandwidth
• to create more broadcast domains
• to eliminate virtual circuits
• to isolate traffic between segments
• to isolate ARP request messages from the rest of the network
6 Refer to the graphic. Which point must be reached before a frame is forwarded when the switch is using store-and-forward mode?
• A
• B
• C
• D
• E
• F
7 Hubs are concerned with which PDU?
• bits
• frames
• packets
• datagrams
8 Which statements are true regarding hubs? (Choose three.)
• Hubs operate at Layer 1 of the OSI model.
• They create separate collision domains.
• Signals are distributed through all ports.
• Layer 2 addresses are used to make decisions.
• They calculate the CRC for each frame received prior to forwarding.
• Bandwidth is shared among all connected users.
9 Which device provides segmentation within a single network?
• hub
• server
• switch
• transceiver
10 Which of the following is a Layer 2 broadcast address?
• 0.0.0.0
• 255.255.255.255
• 11:11:11:11
• FF:FF:FF:FF
• FF:FF:FF:FF:FF:FF
11 Refer to the graphic. Which point in the frame must be reached before it is forwarded by a switch that is using fast-forward mode?
• A
• B
• C
• D
• E
• F
12 Which switching mode changes to store-and-forward mode after it detects a given number of errors?
• cut-through
• adaptive fast-forward
• fragment-free
• adaptive cut-through
13 Which form of buffering is used by bridges?
• cut-through
• fragment-free
• fast-forward
• store-and-forward
14 Where are switching tables stored in a Cisco LAN switch?
• ROM
• CAM
• Flash
• SIMM
• NRAM
15 Which of the following are true regarding the addition of switches to a network? (Choose two.)
• They increase the number of collision domains.
• They decrease the number of collision domains.
• They increase the number of broadcast domains.
• They decrease the number of broadcast domains.
• They increase the amount of bandwidth available to users.
• They decrease the amount of bandwidth available to users.
16 Which of the following is used to build a switching table?
• source IP addresses
• destination IP addresses
• destination MAC addresses
• source MAC addresses
17 Which statements describe asymmetric switching? (Choose three.)
• It uses data compression algorithms to manage higher bandwidth interfaces.
• It is often used to provide high bandwidth uplinks for a number of lower bandwidth client interfaces.
• It provides connections between network segments that operate at different bandwidths.
• It uses cut-through forwarding when going from a lower bandwidth to a higher bandwidth interface.
• It is used to provide more bandwidth to network clients than to backbone or server links.
• It may require buffering frames before forwarding to the destination interface.
18 What does switch latency describe?
• forwarding method used by a switch
• time it takes for a frame to be received by a switch
• improvement in network performance from using a switch
• time delay between when a frame enters and exits a switch
• increase in the size of a collision domain from using a switch
19 How does an Ethernet bridge handle an incoming frame? (Choose three.)
• The source MAC address and input interface pair are added to the bridging table.
• The destination MAC address and input interface pair are added to the bridging table.
• If no match to the destination MAC address is found in the bridging table, the frame is discarded.
• If no match to the destination MAC address is found in the bridging table, the frame is flooded out all other interfaces.
• If a match to the destination MAC address is found in the bridging table, the frame is forwarded out the associated interface.
• If a match to the source MAC address is found in the bridging table, the frame is forwarded to all ports.
20 Which attribute is used by a bridge to make forwarding decisions?
• source IP address
• source MAC address
• destination IP address
• destination MAC address
• Layer 4-7 protocol address
V4.0
Options with highlight colours are correct answer
1. Refer to the exhibit. Switch1 is not participating in the VTP management process with the other switches shown in the exhibit. What are two possible reasons for this? (Choose two.)
• Switch2 is in transparent mode.
• Switch1 is in client mode.
• Switch1 is using VTP version 1 and Switch2 is using VTP version 2.
• Switch2 is in server mode.
• Switch1 is in a different management domain.
• Switch1 has no VLANs.
2. Refer to the exhibit. Switches SW1 and SW2 are interconnected via a trunk link but failed to exchange VLAN information. The network administrator issued the show vtp status command to troubleshoot the problem. On the basis of the output provided, what could be done to fix the problem?
• The switches must be interconnected via access link.
• Switch SW2 must be configured as a VTP client.
• Both switches must be configured as VTP clients.
• Both switches must be configured with the same VTP revision number.
• The switches must be configured with the same VTP domain name.
3. Refer to the exhibit. Which two facts can be confirmed by this output? (Choose two.)
• If this switch is added to an established network, the other VTP-enabled switches in the same VTP domain will consider their own
• VLAN information to be more recent than the VLAN information advertised by this switch.
• This switch shows no configuration revision errors.
• This switch has established two-way communication with the neighboring devices.
• This switch is configured to advertise its VLAN configuration to other VTP-enabled switches in the same VTP domain.
• This switch is configured to allows the network manager to maximize bandwidth by restricting traffic to specific network devices.
4. Which two statements describe VTP transparent mode operation? (Choose two.)
• Transparent mode switches can create VLAN management information.
• Transparent mode switches can add VLANs of local significance only.
• Transparent mode switches pass any VLAN management information that they receive to other switches.
• Transparent mode switches can adopt VLAN management changes that are received from other switches.
• Transparent mode switches originate updates about the status of their VLANS and inform other switches about that status.
5. Refer to the exhibit. Switch2 was previously used in a lab environment and has been added to the production network in server mode. The lab and production networks use the same VTP domain name, so the network administrator made no configuration changes to Switch2 before adding it to the production network. The lab domain has a higher revision number. After Switch2 was added to the production network, many computers lost network connectivity. What is the quickest way to solve the problem?
• Reset the revision number on Switch2 with either the delete VTP command or by changing the domain name and then changing it back.
• Change Switch1 to transparent VTP mode to reclaim all VLANs in vlan.dat, and then change back to server mode.
• Change Switch2 to client mode so the VLANs will automatically repopulate.
• Re-enter all appropriate VLANs, except VLAN 1, manually on Switch1 so that they repropagate throughout the network.
6. What causes a VTP configured switch to issue a summary advertisement?
• A new host has been attached to a switch in the management domain.
• A port on a switch in the management domain has changed to blocking mode.
• A five-minute update timer has elapsed.
• The advertisement revision number has reached n+1.
7. Which two statements describe VTP client mode operation. (Choose two.)
• can add VLANs of local significance only
• can only adopt VLAN management changes
• can create and adopt updated VLAN management information
• can only pass VLAN management information without adopting changes
• can add VLANs to domain
• cannot add VLANs
8 Which statement is true when VTP is configured on a switched network that incorporates VLANs?
• VTP is only compatible with the 802.1Q standard.
• VTP adds to the complexity of managing a switched network.
• A switch configured for VTP can belong to more than one VTP domain.
• VTP dynamically communicates VLAN additions, deletions and modifications to all switches in the same VTP domain.
• VTP advertisements are passed over access links to other switches.

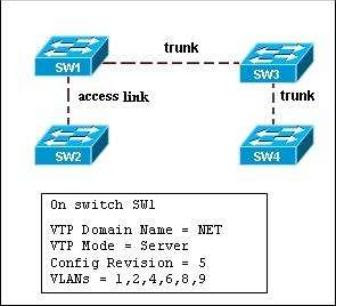

9. Refer to the exhibit. All switches in the VTP domain are new. Switch SW1 is configured as a VTP server, switches SW2 and SW4 are configured as VTP clients, and switch SW3 is configured in VTP transparent mode. Which switch or switches receive VTP updates and synchronize their VLAN configuration based on those updates?
• All switches receive updates and synchronize VLAN information.
• Only switch SW2 receives updates and synchronizes VLAN information.
• SW3 and SW4 receive updates, but only switch SW4 synchronizes VLAN information.
• Only switches SW3 and SW4 receive updates and synchronize VLAN information.
10. Refer to the exhibit. What information can be learned from the output provided?
• It verifies the configured VTP password.
• It verifies the VTP domain is configured to use VTP version 2.
• It verifies VTP advertisements are being exchanged.
• It verifies the VTP domain name is V1.
11. Which statement is true about the VTP pruning process?
• VTP pruning automatically updates all switches within the VTP domain with VLAN information.
• VTP pruning updates all switches within the VTP domain with information about pruning-eligible VLANs.
• VTP pruning updates all switches within the VTP domain with information about pruning-ineligible VLANs.
• VTP pruning prevents flooded traffic from crossing trunk links to switches that do not need to process the flood traffic.
12. Refer to the exhibit. The switches in the exhibit are connected with trunks within the same VTP management domain. Each switch is labeled with its VTP mode. A new VLAN is added to Switch3. This VLAN does not show up on the other switches. What is the reason for this?
• VLANs cannot be created on transparent mode switches.
• Server mode switches neither listen to nor forward VTP messages from transparent mode switches.
• VLANs created on transparent mode switches are not included in VTP advertisements.
• There are no ports assigned to the new VLAN on the other switches.
• Transparent mode switches do not forward VTP advertisements.
13. What does a client mode switch in a VTP management domain do when it receives a summary advertisement with a revision number higher than its current revision number?
• It suspends forwarding until a subset advertisement update arrives.
• It issues an advertisement request for new VLAN information.
• It increments the revision number and forwards it to other switches.
• It deletes the VLANs not included in the summary advertisement.
• It issues summary advertisements to advise other switches of status changes.
14. Which three VTP parameters must be identical on all switches to participate in the same VTP domain? (Choose three.)
• revision number
• domain name
• pruning
• mode
• domain password
• version number

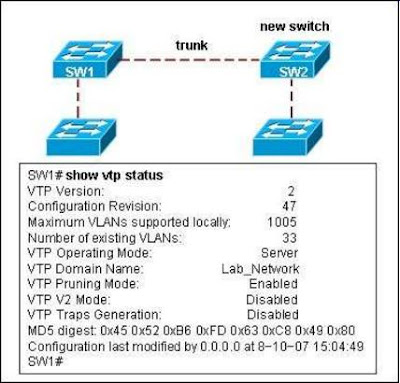

15. Refer to the exhibit. All switches in the network participate in the same VTP domain. What happens when the new switch SW2 with a default configuration and revision number of 0 is inserted in the existing VTP domain Lab Network?
• The switch operates as a VTP client.
• switch operates in VTP transparent mode.
• The switch operates as a VTP server and deletes the existing VLAN configuration in the domain.
• The switch operates as a VTP server, but does not impact the existing VLAN configuration in the domain.
16. Refer to the exhibit. Switch S1 is in VTP server mode. Switches S2 and S3 are in client mode. An administrator accidentally disconnects the cable from F0/1 on S2. What will the effect be?
• S2 loses all VLANs until the cable is reconnected.
• S2 automatically transitions to VTP transparent mode.
• S2 does not send a VTP request advertisement unless it is reloaded.
• S2 automatically sends a VTP request advertisement to 172.17.99.11 when the cable is reconnected.
17. Which two statements are true about the implementation of VTP? (Choose two.)
• Switches must be connected via trunks.
• The VTP domain name is case sensitive.
• Transparent mode switches cannot be configured with new VLANs.
• The VTP password is mandatory and case sensitive.
• Switches that use VTP must have the same switch name.
