CCNA1 - Final Exam v4.0

Final Exam v4.0

Options with highlight colours are correct answer

1. Refer to the exhibit. Host B attempts to establish a TCP/IP session with host C. During this attempt, a frame was captured at the FastEthernet interface fa0/1 of the San Francisco router. The packet inside the captured frame has the source IP address 10.10.1.2, and the destination IP address is 10.31.1.20. What is the destination MAC address of the frame at the time of capture?
0060.7320.D632
0060.7320.D631
0040.8517.44C3
0009.B2E4.EE03
0010.C2B4.3421

2. What are three characteristics of CSMA/CD? (Choose three.)
It monitors the media for presence of a data signal.
After detecting a collision, hosts can resume transmission after a random timer has expired.
A jam signal is used to ensure that all hosts are aware that a collision has occurred.
Devices can be configured with a higher transmission priority.
Data is transmitted only when the data signal is present.
It uses a token system to avoid collisions.

Or
Devices can be configured with a higher transmission priority.
A jam signal indicates that the collision has cleared and the media is not busy.
A device listens and waits until the media is not busy before transmitting.
The device with the electronic token is the only one that can transmit after a collision.
All of the devices on a segment see data that passes on the network medium.
After detecting a collision, hosts can attempt to resume transmission after a random time delay has expired.

3. Refer to the exhibit. The PC, the routing table of which is displayed, is configured correctly. To which network device or interface does the IP address 192.168.1.254 belong?
PC
switch
router interface fa0/0
router interface fa0/1

4. Refer to the exhibit. Host A wants to access the Internet. Which combination of a Layer 2 address and a Layer 3 address will enable this access from host A?
Destination MAC: 0030.8596.DE83 Default gateway: 209.165.202.130
Destination MAC: 0030.8596.DE82 Default gateway: 172.16.9.2
Destination MAC: 0030.8517.44C4 Default gateway: 172.16.1.1
Destination MAC: 0030.8517.44C4 Default gateway: 209.165.202.130

5. Refer to the exhibit. Communication between hosts X and Y is restricted to the local network. What is the reason for this?
The gateway addresses are broadcast addresses.
Host Y is assigned a multicast address.
Host X and host Y belong to different networks.
Host X is assigned a network address.

6. What is the result of using the clock rate 56000 command at the serial interface of the router?
The interface is configured as a DCE device.
The interface timers are cleared.
The FastEthernet interface is made to emulate a serial interface by assigning it a timing signal.
The IP address for the serial interface is configured.

7. Which three addresses belong to the category of public IP addresses? (Choose three.)
127.0.0.1
196.1.105.6
132.11.9.99
10.0.0.1
172.16.9.10
46.1.1.97

8. Which three statements are true about transport layer protocols? (Choose three.)
TCP and UDP manage communication between multiple applications.
TCP retransmits the packets for which the acknowledgment is not received.
TCP acknowledges received data.
UDP exchanges frames between the nodes of the network.
TCP has no mechanism to acknowledge transmission errors.
UDP uses windowing and sequencing to provide reliable transfer of data.

9. Refer to the exhibit. Which logical topology describes the exhibited network?
star
ring
point-to-point
multi-access

10. Which statement is true about the running configuration file in a Cisco IOS device?
It affects the operation of the device immediately when modified.
It is stored in NVRAM.
It should be deleted using the erase running-config command.
It is automatically saved when the router reboots.

11. Refer to the exhibit. Host C is able to ping 127.0.0.1 successfully, but is unable to communicate with hosts A and B in the organization. What is the likely cause of the problem?
Hosts A and B are not on the same subnet as host C.
The IP addresses on the router serial interfaces are wrong.
The subnet mask on host C is improperly configured.
The FastEthernet interface fa0/0 of router 1 is wrongly configured.

12. A host is transmitting a video over the network. How does the transport layer allow this host to use multiple applications to transmit other data at the same time as the video transmission?
It uses error control mechanisms.
It uses a connectionless protocol only for multiple simultaneous transmissions.
It uses multiple Layer 2 source addresses.
It uses multiple port numbers.

13. Refer to the exhibit. PC1 is unable to access PC2. To troubleshoot this problem, the technician needs to confirm that the next hop interface is operational. Which default gateway address should the technician ping from PC1 to confirm this?
10.0.0.254
192.168.0.249
192.168.0.250
10.0.1.254

14. Refer to the exhibit. Cable 1 and Cable 2 are wired for specific physical layer requirements. Which three segments use Cable 2? (Choose three.)
Segment 1
Segment 2
Segment 3
Segment 4
Segment 5
Segment 6

15. Refer to the exhibit. Which two facts can be determined about the topology? (Choose two.)
Three networks are needed.
Two logical address ranges are required.
A single broadcast domain is present.
Three collision domains are present.
Four networks are needed.

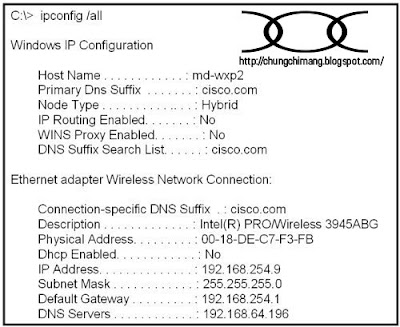

16. Refer to the exhibit. Which three statements are true about the IP configuration that is displayed? (Choose three.)
The assigned address is a private address.
The PC cannot communicate with the DNS server.
The network can have 126 hosts.
The prefix of the computer address is /26.
The IP address is routable on the Internet.
The IP address is a multicast address.

17. Which password restricts Telnet access to the router?
enable
enable secret
console
VTY

18. Refer to the exhibit. To create the initial configuration, a network technician connected host A to the router using the connection that is shown. Which statement is true about this connection?
It terminates at the Ethernet port of the router.
It provides out-of-band console access.
It terminates at the serial interface of the router.
It requires a Telnet client on host A to access the router.

19. Which device should be used for routing a packet to a remote network?
access switch
DHCP server
hub
router

20. Refer to the exhibit. The serial interface of the router was configured with the use of the commands that are shown. The router cannot ping the router that is directly connected to interface serial 0/0/0. What should the network technician do to solve this problem?
Configure the description at interface serial 0/0/0.
Configure an IP address on interface serial 0/0/0.
Remove the no shutdown command at interface serial 0/0/0
Reboot the router.

21. Refer to the exhibit. In a network, host A is sending data segments to host B. The flow control of the segments that are being exchanged is displayed. Which two statements are true about this communication? (Choose two.)
The initial window size is determined via the two-way handshake.
The window size for the TCP session that is represented is initially set to 3000 bytes.
Acknowledgment number 3001 indicates that host A will send the next segment with sequence number 3001.
Host B expects that the next received segment number will be 3000.
No more acknowledgments will be exchanged.

22. Refer to the exhibit. The network administrator wants to remotely access the CLI of the router from PC1 using modem 1. Which port of the router should be connected to modem 2 to enable this access?
console
Ethernet
auxiliary
serial

23. Which OSI layer uses a connection-oriented protocol to ensure reliable delivery of data?
application layer
presentation layer
session layer
transport layer

24. What are two functions of the data link layer? (Choose two.)
It segments and reorders the data.
It exchanges data between programs that are running on the source and destination hosts.
It controls how data is placed onto the media.
It generates signals to represent the bits in each frame.
It encapsulates each packet with a header and a trailer to transfer it across the local media.

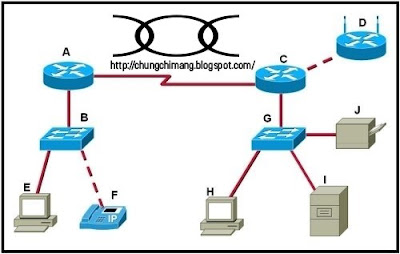

25. Refer to the exhibit. Which list refers only to end devices?
D,E,F,G
A,H,B,C
A,D,E,F
A,D,E,G

26. Refer to the exhibit. The diagram represents the process of sending e-mail between clients. Which list correctly identifies the component or protocol used at each numbered stage of the diagram?
1.MUA 2.MDA 3.MTA 4.SMTP 5.MTA 6.POP 7.MDA 8.MUA
1.MUA 2.POP 3.MDA 4.SMTP 5.MTA 6.MDA 7.SMTP 8.MUA
1.MUA 2.POP 3.SMTP 4.MDA 5.MTA 6.SMTP 7.POP 8.MUA
1.MUA 2.SMTP 3.MTA 4.SMTP 5.MTA 6.MDA 7.POP 8.MUA

27. Refer to the exhibit. Host B was powered off. What change will occur in the MAC table of the switch?
The table will remain unaffected.
The switch will remove the MAC address at Fa0/19 immediately.
The switch will retain the MAC address until host B is powered on again.
The switch will rebuild the MAC table by assigning the FFFF.FFFF.FFFF address to port Fa0/19.

28. Refer to the exhibit. A technician has connected the PC to the switch using a Category 6 UTP cable. Which two statements are true about this connection? (Choose two.)
The cable that is used is an Ethernet crossover cable.
The transmit pin of the cable is terminated to the receive pin.
The maximum distance between the switch and the PC can be 100 m.
The maximum supported bandwidth is 1000 Mb/s.
The Category 6 cable simulates a point-to-point WAN link and is unusable for this type of connection.

29. Refer to the exhibit. A host is using NAT to connect to the Internet. Which three IP addresses enable this connection? (Choose three.)
10.1.1.63
10.1.1.37
10.1.1.39
10.1.1.32
10.1.1.60
10.1.1.2

30. Refer to the exhibit. A PC is communicating with another PC on a remote network. The two networks are connected by three routers. Which action will help to identify the path between the hosts?
Use the ipconfig command at the host.
Use the ipconfig/all command at the destination.
Use the tracert command at the host.
Use the ping command at the destination.

31. An organization wants to create a subnet of the IP network 172.16.0.0. This subnet will accommodate 1000 hosts. Which subnet mask should be assigned to this network?
255.255.0.0
255.255.248.0
255.255.252.0
255.255.254.0
255.255.255.0
255.255.255.128

32. Refer to the exhibit. A host is connected to hub 1. Which combination of IP address, subnet mask, and default gateway can allow this host to function in the network?
IP address: 172.16.31.36 Subnet mask: 255.255.255.240 Default gateway: 172.16.31.35
IP address: 172.16.31.63 Subnet mask: 255.255.255.224 Default gateway: 172.16.31.35
IP address: 172.16.31.29 Subnet mask: 255.255.255.248 Default gateway: 172.16.31.35
IP address: 172.16.31.32 Subnet mask: 255.255.255.224 Default gateway: 172.16.31.35
IP address: 172.16.31.29 Subnet mask: 255.255.255.240 Default gateway: 172.16.30.1
IP address: 172.16.31.37 Subnet mask: 255.255.255.224 Default gateway: 172.16.31.35

33. Refer to the exhibit. A technician uses the nslookup command on the PC and views the output that is displayed in the exhibit. What is the IP address of the primary domain name server configured at the host? (Choose two.)
192.168.1.99
192.168.2.100
10.10.10.32
192.168.1.5
the IP address of the website resolver1.xyz.local

34. Which OSI layer offers ordered data reconstruction services?
application layer
network layer
presentation layer
session layer
transport layer

35. Refer to the exhibit. All devices in the network use default configurations. How many logical address ranges are required in this topology?
2
3
4
5
6

36. The network administrator wants to install a private application on a server. Which range of port numbers is normally assigned to this application to make it accessible by clients?
0 to 255
49152 to 65535
1024 to 49151
0 to 1023

37. Because of a security violation, the router password must be changed. What information can be learned from these configuration entries? (Choose two.)

Router(config)# line vty 0 4

Router(config-line)# password arj15

Router(config-line)# login
This configuration allows users to connect by using a modem.
Users must specify which line, 0 or 4, they wish to connect to when making a connection.
This configuration allows users to connect to the router via the use of the telnet command.
This configuration allows five users to make simultaneous connections to this router.
The configured password is automatically encrypted on the router.

38. Refer to the exhibit. Each media link is labeled. What type of cable should be used to connect the different devices?
Connection 1 - rollover cable Connection 2 - straight-through cable Connection 3 - crossover cable
Connection 1 - straight-through cable Connection 2 - crossover cable Connection 3 - rollover cable
Connection 1 - crossover cable Connection 2 - rollover cable Connection 3 - straight-through cable
Connection 1 - crossover cable Connection 2 - straight-through cable Connection 3 - rollover cable
Connection 1 - straight-through cable Connection 2 - straight-through cable Connection 3 - straight-through cable

39. Which two types of media are useful for connecting two devices separated by a distance of 500 meters? (Choose two.)
10 BASE-T
1000 BASE-TX
10 BASE-2
1000 BASE LX
1000 BASE-SX

40. Which information is used by the router to determine the path between the source and destination hosts?
the host portion of the IP address
the network portion of the IP address
host default gateway address
the MAC address

41. Refer to the exhibit. What two facts can be determined from the session information that is displayed? (Choose two.)
This exchange is part of the three-way handshake.
The destination port indicates that a Telnet session has been initiated.
The source port does not support communication with the destination port that is listed.
The destination port indicates that an SMTP session has been initiated.
The protocol is a connection-oriented protocol.

42. Refer to the exhibit. Host A is accessing multiple servers. Which combination of port number and address will uniquely identify a particular process running on a specific server?
MAC address of the server and port number of the service
IP address of the host and port number of the service
MAC address of the host and port number of the service
IP address of the server and port number of the service

43. A network technician wants to configure an IP address on a router interface by using the ip address 192.168.1.0 255.255.255.0 command. Which prompt should the technician see when entering this command?
Router>
Router(config-if)#
Router#
Router(config)#

44. Refer to the exhibit. Host X is unable to communicate with host Y. Which command can be run at host X to determine which intermediary device is responsible for this failure?
telnet 192.168.1.1
ping 192.168.1.1
ftp 192.168.1.1
tracert 192.168.1.1

45. Refer to the exhibit. In a network, PC1 sends a message to PC2. The frame received at PC2 is shown. What information in this frame determines the correct destination application?
timing and synchronization bits
destination and source physical addresses
destination and source logical network addresses
destination and source process numbers

46. An organization has been assigned network ID 10.10.128.0 and subnet mask 255.255.224.0. Which IP address range can be used for this organization?
10.10.128.0 to 10.10.160.255
10.10.128.0 to 10.10.159.255
10.10.128.0 to 10.10.192.255
10.10.128.0 to 10.10.0.159
10.10.128.0 to 10.10.159.0

47. What is the effect of using the Router# copy running-config startup-config command on a router?
The contents of ROM will change.
The contents of RAM will change.
The contents of NVRAM will change.
The contents of flash will change.

48. Which three IPv4 addresses represent valid host addresses for a subnet? (Choose three.)
10.1.12.79/28
10.1.12.113/28
10.1.12.32/28
10.1.11.5/27
10.1.11.97/27
10.1.11.128/27

Or
172.16.4.63 /26
172.16.4.129 /26 172.16.4.191 /26
172.16.4.51 /27 172.16.4.95 /27
172.16.4.221 /27

49. Refer to the exhibit. The NAT functionality of the router is enabled to provide Internet access to the PC. However, the PC is still unable to access the Internet. Which IP address should be changed to 209.165.201.1 to enable the PC to access the Internet?
192.168.1.191
192.168.1.101
192.168.1.1
192.168.1.254

50. Which three statements are true about network layer addressing? (Choose three.)
It uniquely identifies each host.
It assists in forwarding packets across internetworks.
It uses a logical 32-bit IPv4 address.
It is not a configurable address.
It is a physical address.
It identifies the host from the first part of the address.

51. A PC can not connect to any remote websites, ping its default gateway, or ping a printer that is functioning properly on the local network segment. Which action will verify that the TCP/IP stack is functioning correctly on this PC?
Use the ipconfig /all command at the host’s command prompt.
Use the ping 127.0.0.1 command at the command prompt.
Use the traceroute command at the command prompt to identify failures on the path to the gateway.
Use FTP to check for connectivity to remote sites.
Download a troubleshooting tool from the PC manufacturer’s website.

52. Refer to the exhibit. Which set of devices contains only intermediary devices?
A, B, D, G
A, B, E, F
C, D, G, I
G, H, I, J

53. Refer to the exhibit. When computer A sends a frame to computer D, what computers receive the frame?only computer D
only computer A and computer D
only computer B, computer C, and computer D
all computers

54. Which password is automatically encrypted when it is created?
vty
aux
console
enable secret
enable password

55. Which three statements characterize the transport layer protocols? (Choose three.)
TCP and UDP port numbers are used by application layer protocols.
TCP uses port numbers to provide reliable transportation of IP packets.
UDP uses windowing and acknowledgments for reliable transfer of data.
TCP uses windowing and sequencing to provide reliable transfer of data.
TCP is a connection-oriented protocol. UDP is a connectionless protocol.

56. Which type of media is immune to EMI and RFI? (Choose two.)
10 Base-T
10 Base-2
10 Base-5
100 Base-FX
100 Base TX
1000 Base LX

57. Refer to the exhibit. A technician is working on a network problem that requires verification of the router LAN interface. What address should be pinged from this host to confirm that the router interface is operational?127.0.0.1
192.168.64.196
192.168.254.1
192.168.254.9
192.168.254.254

58. Refer to the exhibit. What function does router RT_A need to provide to allow Internet access for hosts in this network?address translation
DHCP services
ftpd
web server

59. Refer to the exhibit. The network containing router B is experiencing problems. A network associate has isolated the issue in this network to router B? What action can be preformed to correct the network issue?issue the ip address command on interface FastEthernet 0/0
issue the no shutdown command on interface FastEthernet 0/1
issue the clock rate command on interface Serial 0/0/0
issue the description command on interface Serial 0/0/1

60. In a Cisco IOS device, where is the startup-configuration file stored?
Flash
NVRAM
RAM
ROM

61. A routing issue has occurred in you internetwork. Which of the following type of devices should be examined to isolate this error?
access point
host
hub
router
switch

62. Which OSI layer protocol does IP rely on to determine whether packets have been lost and to request retransmission?
application
presentation
session
transport
